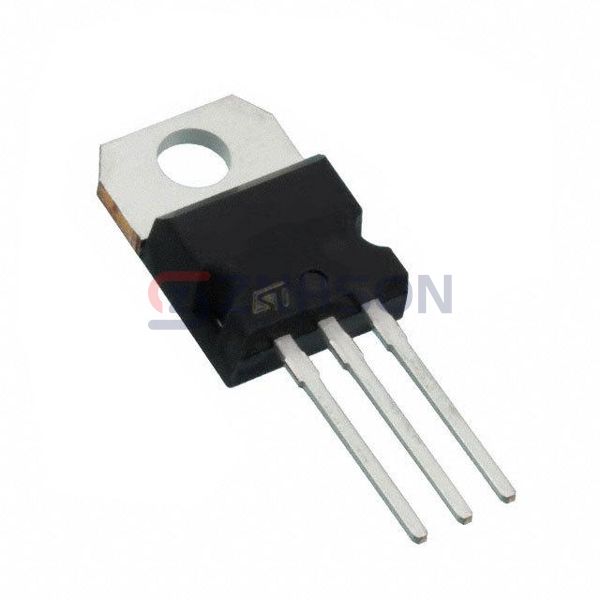

STPS20120CTN
STMicroelectronics
STMicroelectronics
DIODE ARRAY SCHOTTKY 120V TO220
$1.77
Available to order
Reference Price (USD)
1+
$1.88000
50+
$1.61400
100+
$1.39200
500+
$1.16400
1,000+
$0.98400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the STPS20120CTN by STMicroelectronics represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With STMicroelectronics's patented junction design, the STPS20120CTN achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 920 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 120 V
- Operating Temperature - Junction: 175°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB Narrow Leads
