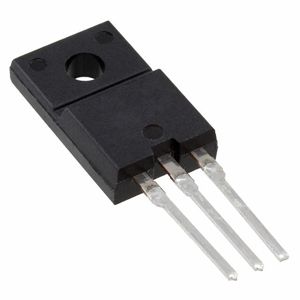

STPS30M80CFP
STMicroelectronics
STMicroelectronics
DIODE ARRAY SCHOTTKY 80V TO220FP
$1.65
Available to order
Reference Price (USD)
1+
$1.65000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STPS30M80CFP - STMicroelectronics's advanced solution in the Diodes - Rectifiers - Arrays segment. This high-speed rectifier array boasts ultra-low recovery time, significantly reducing power loss in switching applications. From server power supplies to LED lighting drivers and electric vehicle charging stations, this component ensures energy-efficient operation. STMicroelectronics combines innovative silicon technology with rigorous testing to deliver diode arrays that outperform in reliability and thermal management.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 745 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 µA @ 80 V
- Operating Temperature - Junction: 175°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220AB Full-Pak
Related Products
Diodes Incorporated
BAW56Q-7-F
Micro Commercial Co
MD200K16D2-BP
Panjit International Inc.
BAV99STB6_R1_00001
STMicroelectronics
STPS4045CT
Vishay General Semiconductor - Diodes Division
VS-MBR3045WT-N3
IXYS
DSA70C100HB
Infineon Technologies
DD710N16KHPSA2
Panjit International Inc.
BD850CS_S2_00001
Toshiba Semiconductor and Storage

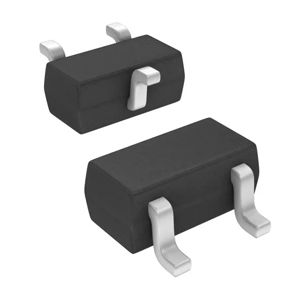

1SS362TE85LF
