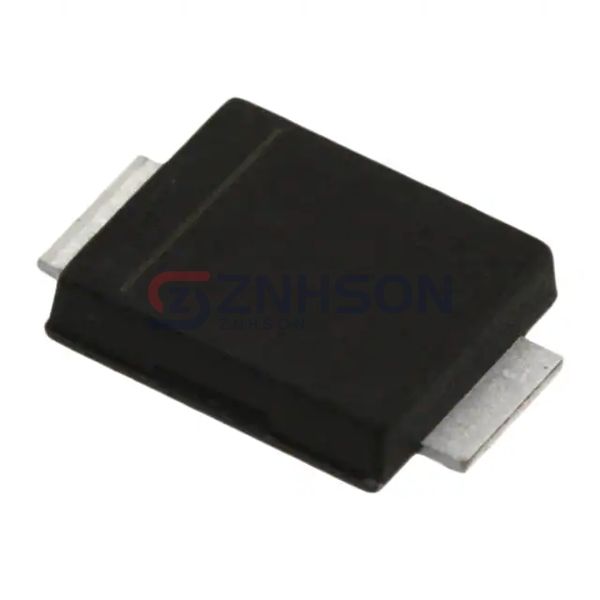

STPS5H100UFN
STMicroelectronics
STMicroelectronics
AUTOMOTIVE 100 V, 5 A PSMC POWER
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the STPS5H100UFN single rectifier diode from STMicroelectronics. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The STPS5H100UFN is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. STMicroelectronics's commitment to innovation ensures that the STPS5H100UFN meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 745 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 8 µA @ 100 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-221AA, SMB Flat Leads
- Supplier Device Package: SMBflat Notch
- Operating Temperature - Junction: 175°C
