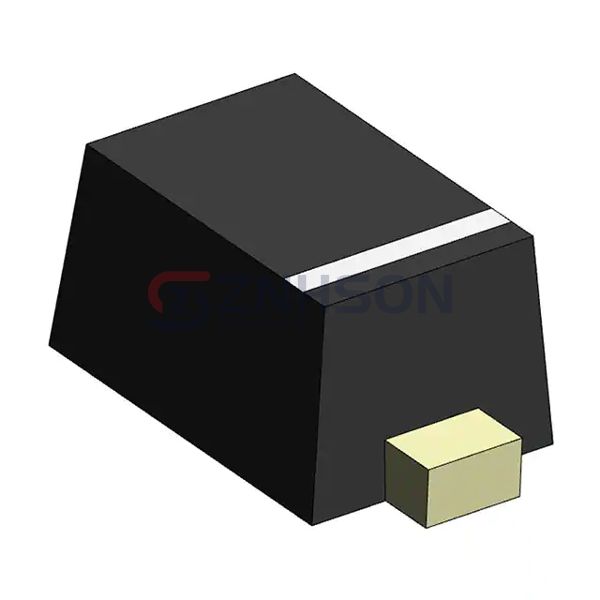

STS521070U701
Eaton - Electronics Division
Eaton - Electronics Division
TVS DIODE 7VWM 16VC SOD523
$0.43
Available to order
Reference Price (USD)
1+
$0.43000
500+
$0.4257
1000+
$0.4214
1500+
$0.4171
2000+
$0.4128
2500+
$0.4085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the STS521070U701 TVS diode by Eaton - Electronics Division. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the STS521070U701 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the STS521070U701 can shield HDMI ports in consumer electronics from voltage surges. Trust Eaton - Electronics Division's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 7V (Max)
- Voltage - Breakdown (Min): 7.5V
- Voltage - Clamping (Max) @ Ipp: 16V
- Current - Peak Pulse (10/1000µs): 9A (8/20µs)
- Power - Peak Pulse: 120W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 70pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
