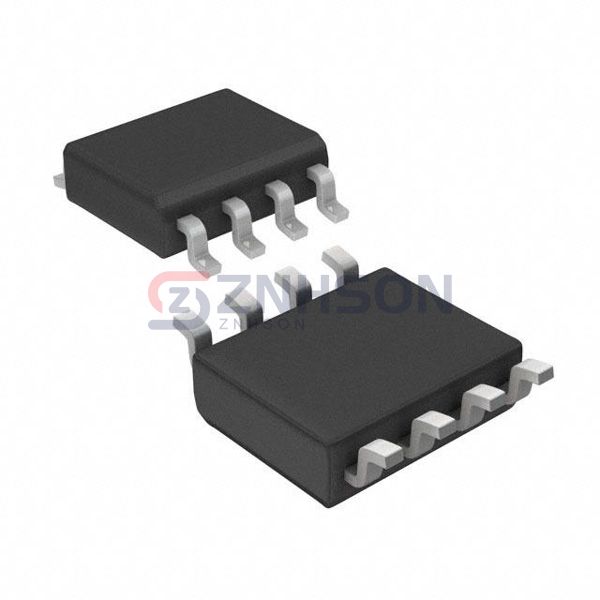

STS9P3LLH6
STMicroelectronics
STMicroelectronics
MOSFET P-CH 30V 9A 8SO
$0.00
Available to order
Reference Price (USD)
2,500+
$0.41580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STS9P3LLH6 from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STS9P3LLH6 ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 15mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2615 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SO
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
