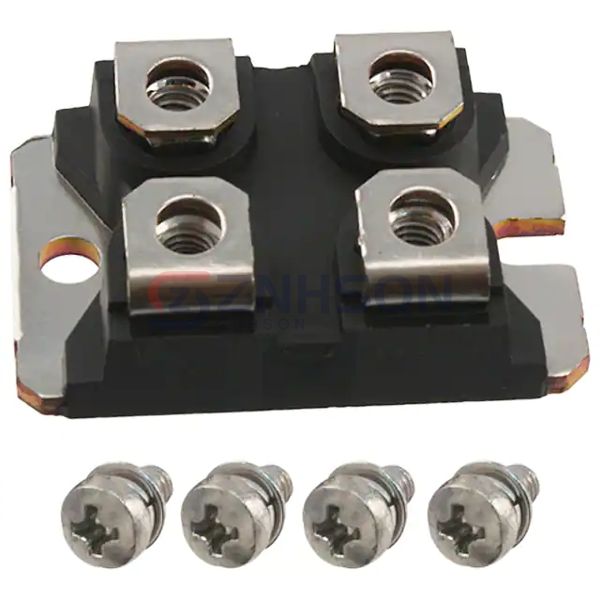

STTH120R04TV1
STMicroelectronics
STMicroelectronics
DIODE MODULE 400V 60A ISOTOP
$27.35
Available to order
Reference Price (USD)
1+
$24.32000
10+
$22.42800
100+
$19.15200
500+
$17.38800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the STTH120R04TV1 by STMicroelectronics represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With STMicroelectronics's patented junction design, the STTH120R04TV1 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 400 V
- Current - Average Rectified (Io) (per Diode): 60A
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 60 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 80 ns
- Current - Reverse Leakage @ Vr: 60 µA @ 400 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Chassis Mount
- Package / Case: ISOTOP
- Supplier Device Package: ISOTOP®
