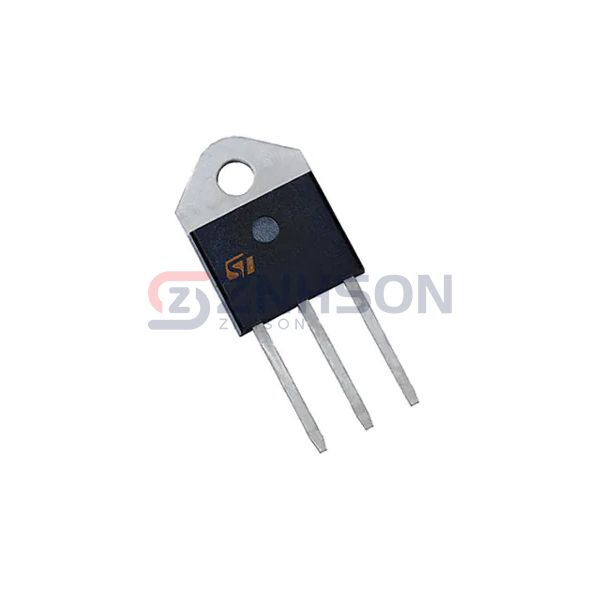

STTH1506TPI
STMicroelectronics
STMicroelectronics
DIODE ARRAY GP 600V 15A 3TOPI
$7.10
Available to order
Reference Price (USD)
1+
$5.83000
30+
$4.94767
120+
$4.28783
510+
$3.65018
1,020+
$3.07846
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STTH1506TPI from STMicroelectronics is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose STMicroelectronics's STTH1506TPI for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 3.6 V @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 20 µA @ 600 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Through Hole
- Package / Case: TOP-3 Insulated
- Supplier Device Package: TOP-3I
