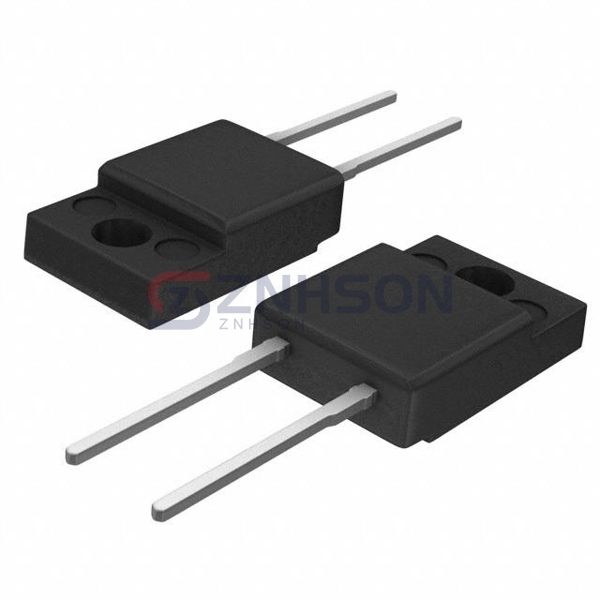

STTH20R04FP
STMicroelectronics
STMicroelectronics
DIODE GEN PURP 400V 20A TO220FP
$1.67
Available to order
Reference Price (USD)
1+
$2.31000
50+
$1.97720
100+
$1.70530
500+
$1.42592
1,000+
$1.20540
2,500+
$1.16865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STTH20R04FP by STMicroelectronics is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the STTH20R04FP ensures long-term reliability even in harsh operating conditions. Trust STMicroelectronics for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 400 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 45 ns
- Current - Reverse Leakage @ Vr: 20 µA @ 400 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2 Full Pack
- Supplier Device Package: TO-220FPAC
- Operating Temperature - Junction: 175°C (Max)
