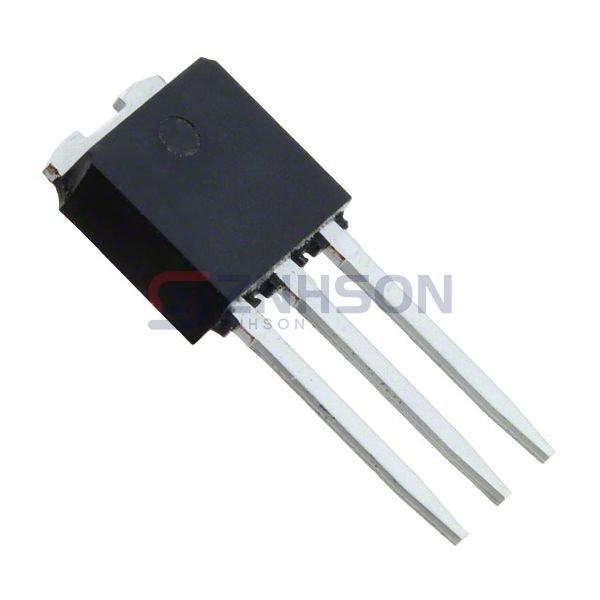

STU75N3LLH6-S
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 75A IPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$0.76076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STU75N3LLH6-S from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STU75N3LLH6-S ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.9mOhm @ 37.5A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1690 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
