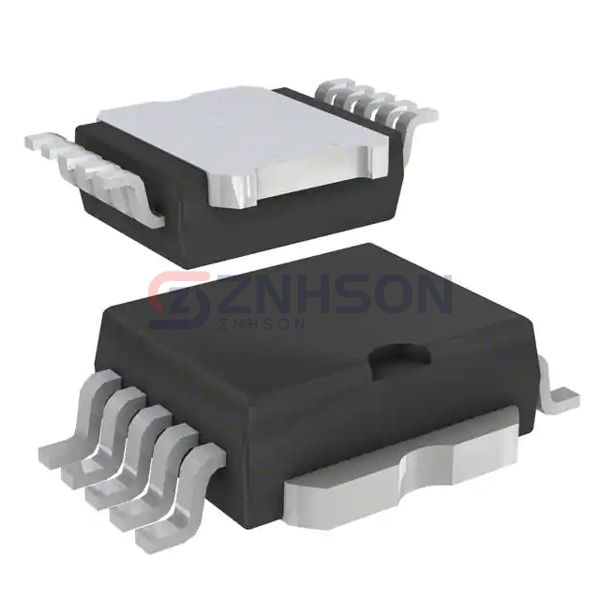

STV200N55F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 55V 200A 10POWERSO
$0.00
Available to order
Reference Price (USD)
600+
$4.38240
1,200+
$3.69600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STV200N55F3 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STV200N55F3 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 55 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 100 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6800 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 10-PowerSO
- Package / Case: PowerSO-10 Exposed Bottom Pad
