STW13N80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 12A TO247
$5.14
Available to order
Reference Price (USD)
1+
$4.67000
30+
$3.81100
120+
$3.49633
510+
$2.88288
1,020+
$2.47389
2,520+
$2.36379
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the STW13N80K5 single MOSFET from STMicroelectronics. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the STW13N80K5 combines cutting-edge technology with STMicroelectronics's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 450mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 870 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 190W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
onsemi
NTD60N03T4
NXP USA Inc.
PSMN5R6-100XS,127
Vishay Siliconix
SQP120P06-6M7L_GE3
STMicroelectronics

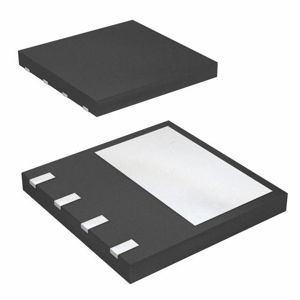

STL33N60DM6
Toshiba Semiconductor and Storage

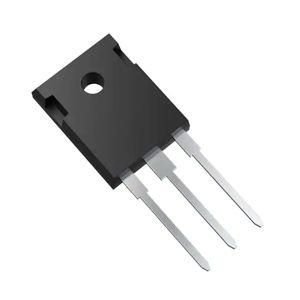

TW107N65C,S1F
onsemi

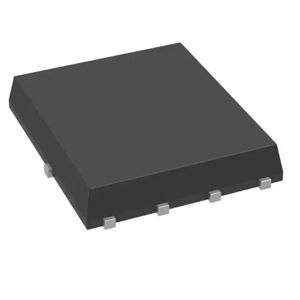

FDMS86101A
Torex Semiconductor Ltd
XP235N2001TR-G
Infineon Technologies
IRFSL4127PBF
Wolfspeed, Inc.

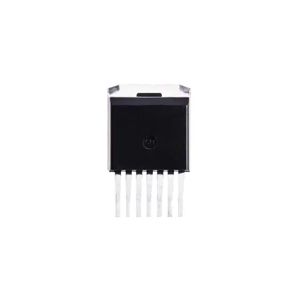

C3M0045065J1
