STW200NF03
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 120A TO247-3
$0.00
Available to order
Reference Price (USD)
600+
$4.47370
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STW200NF03 from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STW200NF03 ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.8mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 280 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 10000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 350W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
Infineon Technologies
SPD25N06S2-40
Infineon Technologies
BSO4410T
onsemi
FQPF3P50
Vishay Siliconix
SI4390DY-T1-GE3
onsemi
NTMFS4C09NT1G-001
Infineon Technologies
AUIRFR48Z
Infineon Technologies
IRFS17N20DPBF
Infineon Technologies
IRF6609TR1PBF
Infineon Technologies

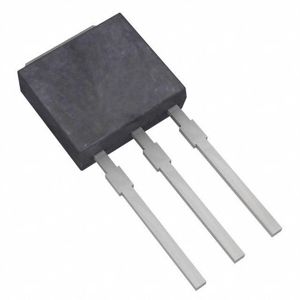

IPU135N03L G
