STW220NF75
STMicroelectronics
STMicroelectronics
MOSFET N-CH 75V 120A TO247-3
$0.00
Available to order
Reference Price (USD)
600+
$4.99100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STW220NF75 from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STW220NF75 for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 75 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.4mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 430 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 12500 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 500W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
onsemi
FQPF17N40
Vishay Siliconix
IRFR420TRL
IXYS
IXTC160N10T
Vishay Siliconix
SI4620DY-T1-E3
Renesas Electronics America Inc
NP88N075KUE-E1-AY
Alpha & Omega Semiconductor Inc.
AO4466L
Vishay Siliconix
IRFP460
Infineon Technologies
BSF050N03LQ3GXUMA1
Infineon Technologies

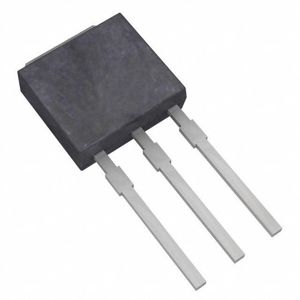

IPU50R950CEAKMA2
