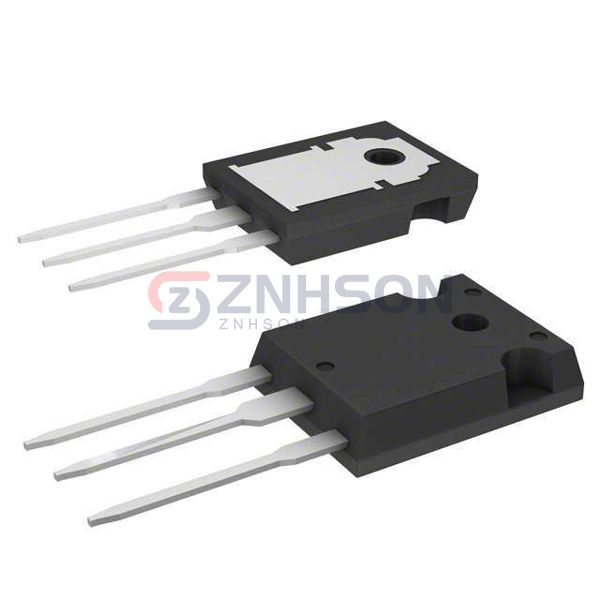

STW80H150C
SMC Diode Solutions
SMC Diode Solutions
DIODE ARRAY SCHOTT 150V TO247AD
$3.01
Available to order
Reference Price (USD)
1+
$1.99000
25+
$1.63240
100+
$1.48390
500+
$1.18714
1,000+
$1.00907
2,500+
$0.97939
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STW80H150C rectifier array from SMC Diode Solutions redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. SMC Diode Solutions's precision manufacturing ensures each STW80H150C meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io) (per Diode): 40A
- Voltage - Forward (Vf) (Max) @ If: 910 mV @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 300 µA @ 150 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
Related Products
Diotec Semiconductor
SK30100CD2
Vishay General Semiconductor - Diodes Division
VS-20CTQ040HN3
Vishay General Semiconductor - Diodes Division
VBT10200C-E3/8W
Rohm Semiconductor
DAN202FMFHT106
Infineon Technologies

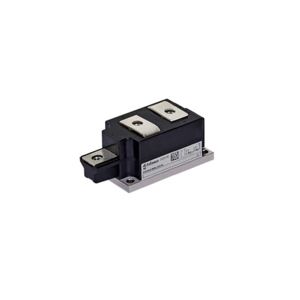

DD350N12KHPSA1
Diodes Incorporated
BAV70Q-7-F
SMC Diode Solutions
16CTQ100S
Taiwan Semiconductor Corporation

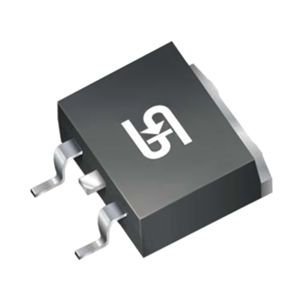

TSD20H120CW
Nexperia USA Inc.

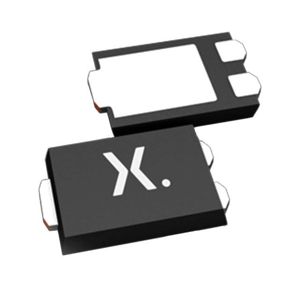

PNE20060CPE-QZ
