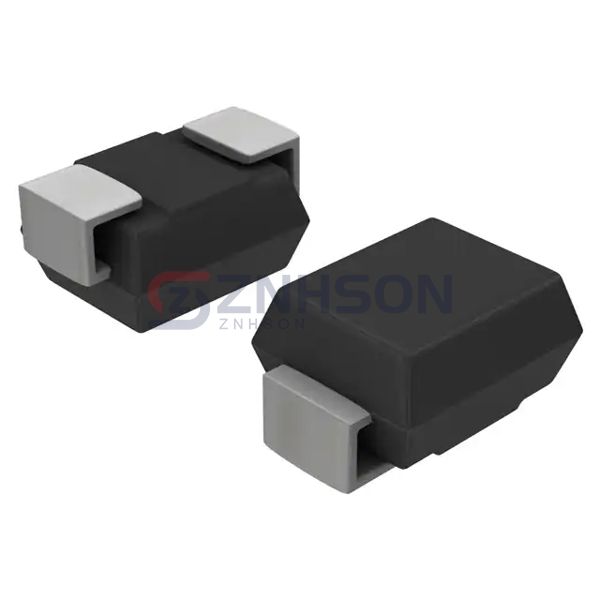

SZ1SMB22AT3G
Littelfuse Inc.
Littelfuse Inc.
TVS DIODE 22VWM 35.5VC SMB
$0.53
Available to order
Reference Price (USD)
2,500+
$0.25915
5,000+
$0.24268
12,500+
$0.23993
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZ1SMB22AT3G from Littelfuse Inc. is a high-performance TVS diode designed for robust circuit protection. These diodes are essential for safeguarding sensitive electronic components from voltage spikes and transient events. With fast response times and high surge capabilities, the SZ1SMB22AT3G ensures reliable performance in demanding environments. TVS diodes are widely used in telecommunications, automotive, and industrial applications. For instance, they protect data lines in routers and prevent damage from electrostatic discharge (ESD) in automotive electronics. Choose Littelfuse Inc.'s SZ1SMB22AT3G for superior protection and durability in your circuits.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 16.9A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 730pF @ 1MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
