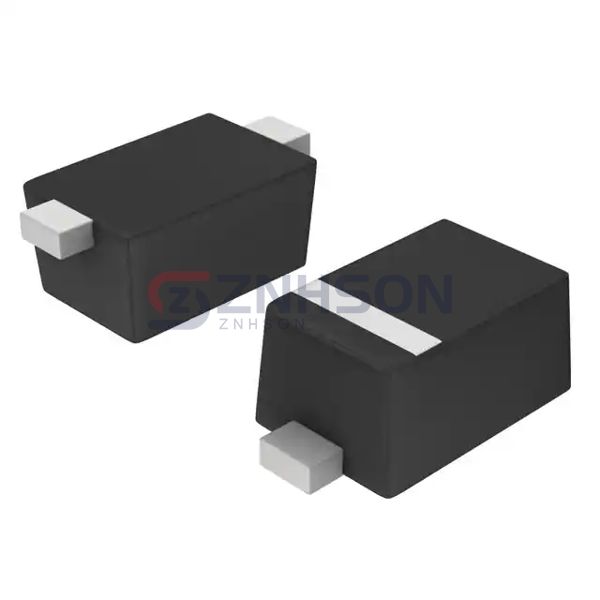

SZMM5Z5V6T1G
onsemi
onsemi
DIODE ZENER 5.6V 500MW SOD523
$0.50
Available to order
Reference Price (USD)
3,000+
$0.09450
6,000+
$0.08950
15,000+
$0.08200
30,000+
$0.07700
75,000+
$0.06950
150,000+
$0.06700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the SZMM5Z5V6T1G Zener diode from onsemi is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The SZMM5Z5V6T1G is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±7%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 2 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
Related Products
Rohm Semiconductor
BZX84B10VLFHT116
Microchip Technology
JAN1N3019CUR-1/TR
Comchip Technology
ACZRC5369B-G
Taiwan Semiconductor Corporation
BZV55C62 L0G
Microchip Technology
JAN1N4483CUS
Microchip Technology
JAN1N5543D-1/TR
Vishay General Semiconductor - Diodes Division
BZG05C27-M3-18
Vishay General Semiconductor - Diodes Division
TZMB3V9-GS08
Microchip Technology

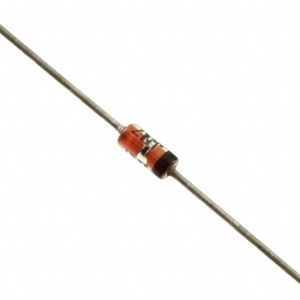

1N5226BE3
