SZMM5Z5V6T5G
onsemi
onsemi

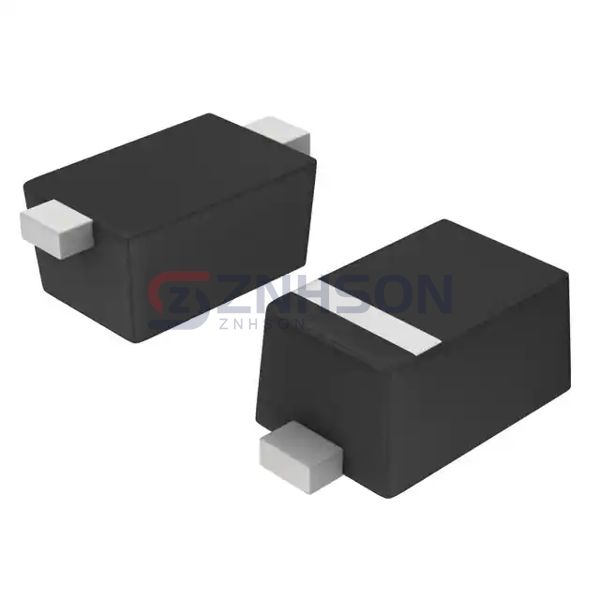

DIODE ZENER 5.6V 500MW SOD523
$0.08
Available to order
Reference Price (USD)
1+
$0.08453
500+
$0.0836847
1000+
$0.0828394
1500+
$0.0819941
2000+
$0.0811488
2500+
$0.0803035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZMM5Z5V6T5G from onsemi is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the SZMM5Z5V6T5G is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±7.14%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 2 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
