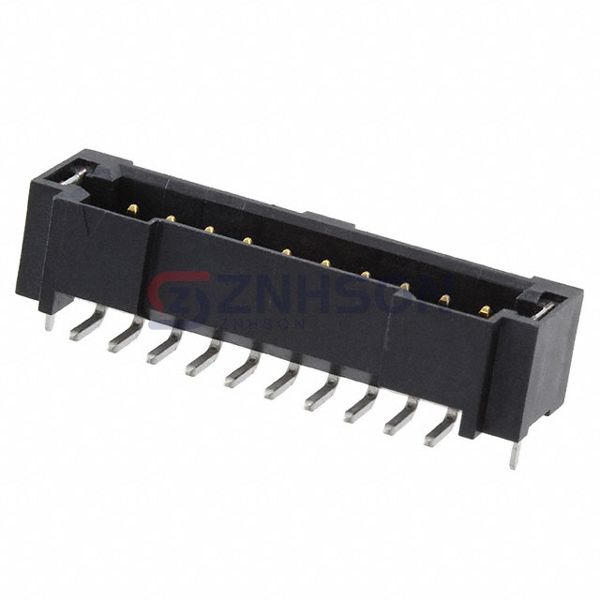

T2M-110-01-L-D-SM-WT
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 2MM
$8.11
Available to order
Reference Price (USD)
1+
$4.85000
22+
$4.65591
110+
$3.88000
506+
$3.29800
1,012+
$2.81300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The T2M-110-01-L-D-SM-WT from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the T2M-110-01-L-D-SM-WT offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.228" (5.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3.8A
- Voltage Rating: -
Related Products
Molex
0026482125
Amphenol ICC (FCI)
54101-T08-00
Amphenol ICC (FCI)
10143535-112KLF
Samtec Inc.
TSM-121-02-T-SV-P
Molex

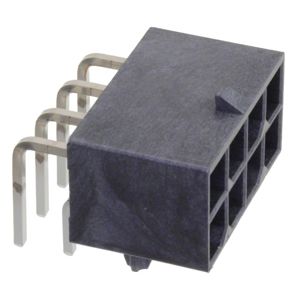

1720641008
Samtec Inc.

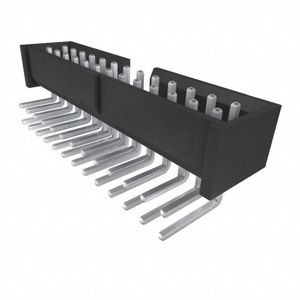

LTMM-113-02-T-D-RA
Samtec Inc.

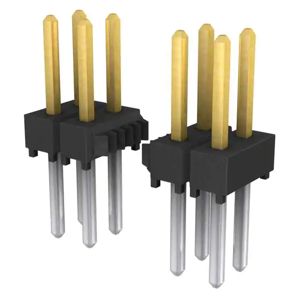

TSW-107-08-S-D
Mill-Max Manufacturing Corp.

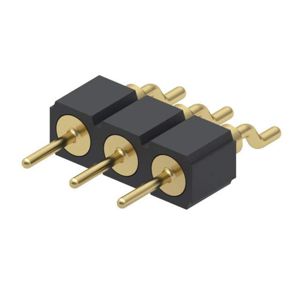

330-10-103-40-027000
Preci-Dip

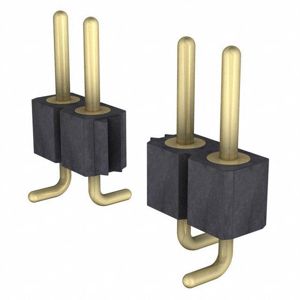

800-10-009-30-001101
