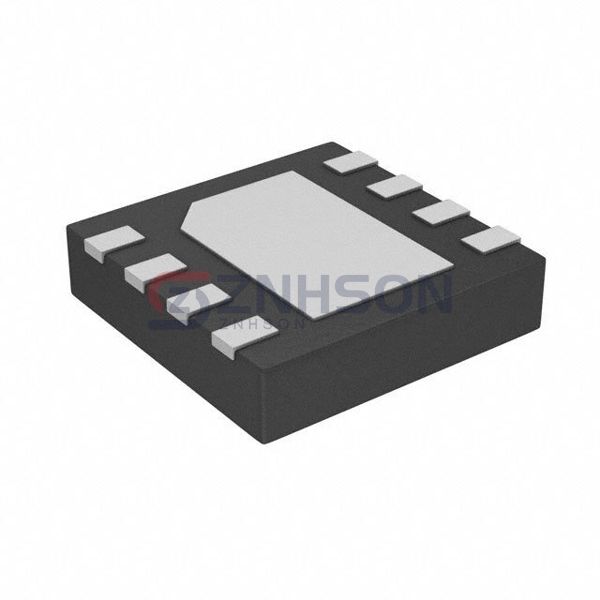

TC1301B-GDDVMFTR
Microchip Technology
Microchip Technology
IC REG LINEAR 2.7V/3V/2.5V 8DFN
$0.68
Available to order
Reference Price (USD)
3,300+
$0.40170
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TC1301B-GDDVMFTR from Microchip Technology is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the TC1301B-GDDVMFTR provides the reliability you need.
As a member of the PMIC - Voltage Regulators - Linear family, the TC1301B-GDDVMFTR excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications.
The TC1301B-GDDVMFTR is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 2.7V, 3V, 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.18V @ 300mA, 0.25V @ 150mA
- Current - Output: 300mA, 150mA
- Current - Quiescent (Iq): 180 µA
- Current - Supply (Max): -
- PSRR: 58dB (100Hz)
- Control Features: Enable, Reset
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN (3x3)
