TC7LX1101WBG(EL,AH
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
IC TRNSLTR BIDIRECTIONAL 6WCSPB
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage's TC7LX1101WBG(EL,AH stands out in the Logic - Translators, Level Shifters segment with its unique combination of speed and power efficiency. This bi-directional voltage translator supports data rates up to 100Mbps while consuming minimal power, thanks to its advanced CMOS technology. The auto-direction sensing eliminates the need for additional control signals, reducing design complexity. Practical applications range from gaming consoles (interface between high-speed memory and low-voltage processors) to industrial HMIs (connecting touch panels with various voltage requirements) and satellite communications equipment.
Specifications
- Product Status: Obsolete
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 1
- Voltage - VCCA: 1.2 V ~ 3.6 V
- Voltage - VCCB: 1.2 V ~ 3.6 V
- Input Signal: -
- Output Signal: -
- Output Type: Non-Inverted
- Data Rate: 180Mbps
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: Auto-Direction Sensing
- Mounting Type: Surface Mount

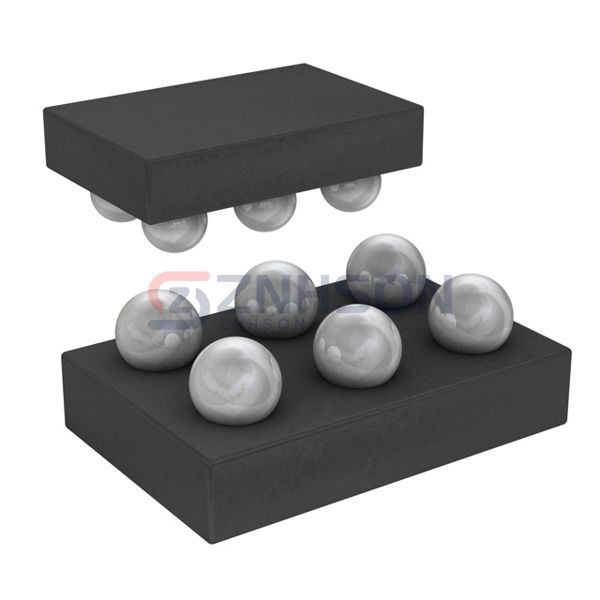

- Package / Case: 6-UFBGA, WLCSP
- Supplier Device Package: 6-WCSPB (0.80x1.2)
