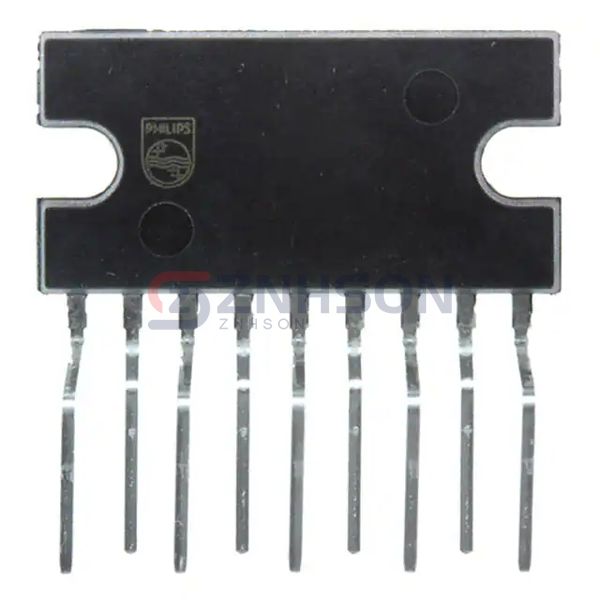

TDA3617J/N1,112
NXP USA Inc.
NXP USA Inc.
IC REG LINEAR 9V/5V/3.3V 9-PDBS
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TDA3617J/N1,112 linear voltage regulator IC by NXP USA Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TDA3617J/N1,112 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 3
- Voltage - Input (Max): 17.5V
- Voltage - Output (Min/Fixed): 9V, 5V, 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1V @ 1.3A, 1.5V @ 600mA, -
- Current - Output: 1.3A, 600mA, 300mA
- Current - Quiescent (Iq): 40 µA
- Current - Supply (Max): -
- PSRR: 70dB (3kHz)
- Control Features: Enable, Hold
- Protection Features: Load Dump, Over Current, Over Temperature, Short Circuit, Transient Voltage
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 9-SIP Formed Leads
- Supplier Device Package: 9-PDBS
