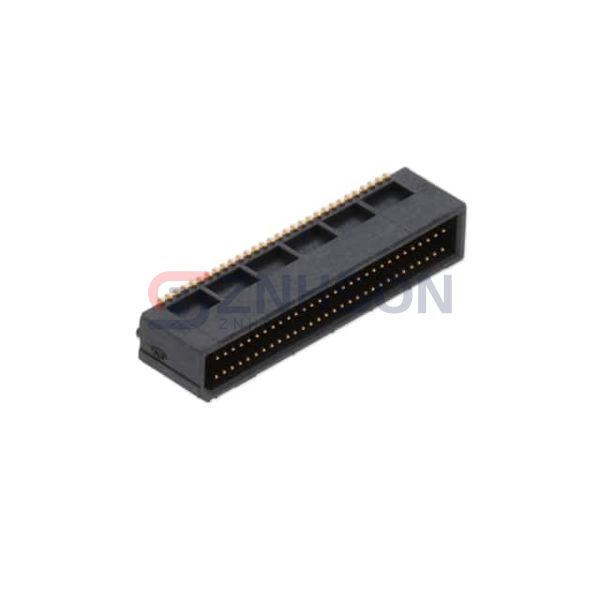

TEMS-130-02-04.0-H-D-A-K-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 60POS 0.8MM
$13.44
Available to order
Reference Price (USD)
350+
$8.77300
700+
$8.20700
1,050+
$7.52780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TEMS-130-02-04.0-H-D-A-K-TR by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.063" (1.60mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.251" (6.38mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 235VAC, 330VDC
