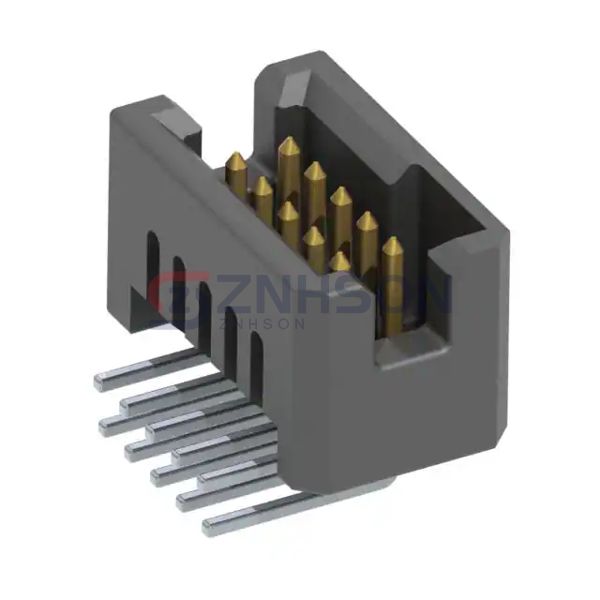

TFM-105-01-L-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 10POS 1.27MM
$3.52
Available to order
Reference Price (USD)
1+
$2.16000
60+
$1.76217
120+
$1.68208
540+
$1.40176
1,020+
$1.20150
5,040+
$1.06533
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFM-105-01-L-D-RA by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TFM-105-01-L-D-RA supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.075" (1.91mm)
- Overall Contact Length: -
- Insulation Height: 0.225" (5.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
JAE Electronics
MX34R08HF4T
TE Connectivity AMP Connectors
207444-9
Samtec Inc.
ZSS-105-05-S-D-840
Amphenol ICC (FCI)
77314-163LF
Samtec Inc.
TSM-104-01-LM-SV-A
Samtec Inc.
TMM-120-06-L-D-SM-A-P
TE Connectivity AMP Connectors
281698-6
Preci-Dip
800-80-002-30-480101

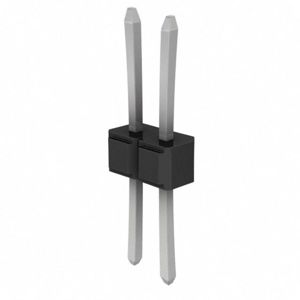

3M
