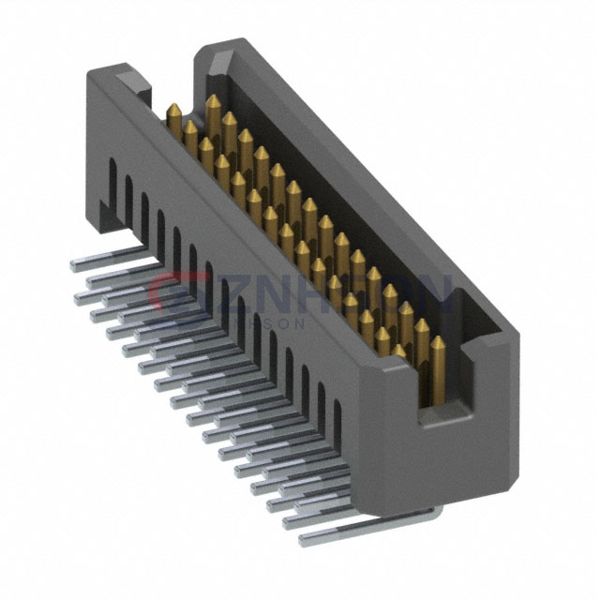

TFM-115-01-S-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 30POS 1.27MM
$10.12
Available to order
Reference Price (USD)
1+
$6.02000
25+
$5.27120
100+
$4.76900
500+
$4.01600
1,000+
$3.51400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TFM-115-01-S-D-RA rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TFM-115-01-S-D-RA adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.075" (1.91mm)
- Overall Contact Length: -
- Insulation Height: 0.225" (5.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
