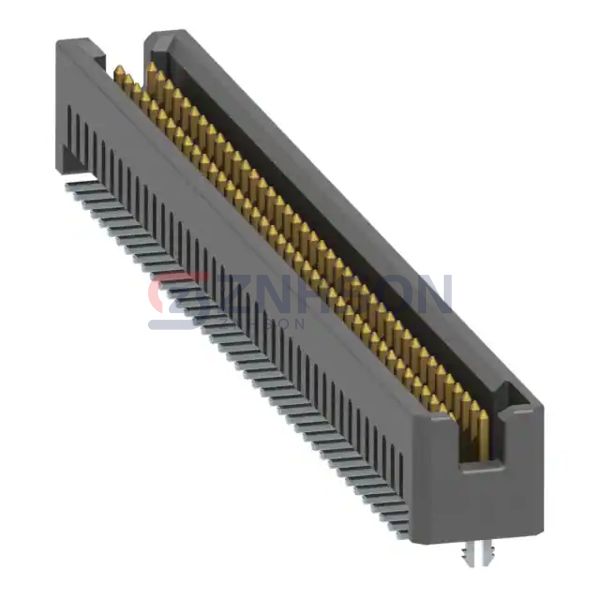

TFM-140-02-L-D-LC-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 80POS 1.27MM
$10.55
Available to order
Reference Price (USD)
125+
$9.06104
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the TFM-140-02-L-D-LC-P-TR rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the TFM-140-02-L-D-LC-P-TR is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
