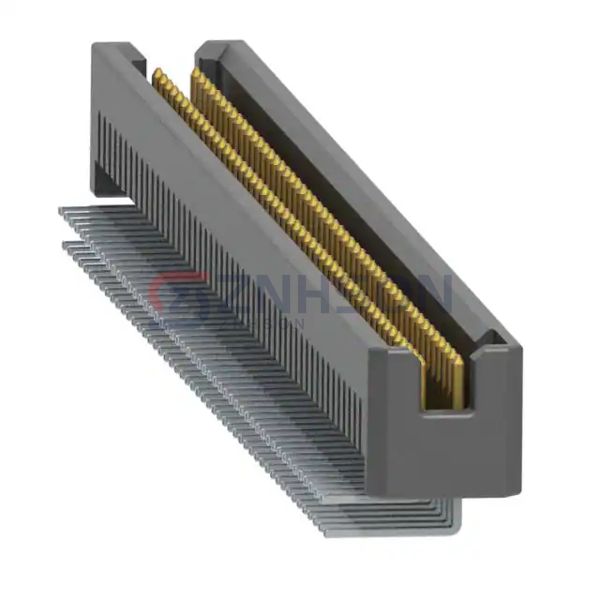

TFM-150-01-S-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 100P 1.27MM
$24.63
Available to order
Reference Price (USD)
1+
$15.98000
16+
$14.83938
104+
$11.41500
504+
$10.42569
1,000+
$9.89300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFM-150-01-S-D-RA male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.075" (1.91mm)
- Overall Contact Length: -
- Insulation Height: 0.225" (5.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
