TFML-107-01-S-D-RA

Samtec Inc.
TFML-107-01-S-D-RA Preview
Samtec Inc.

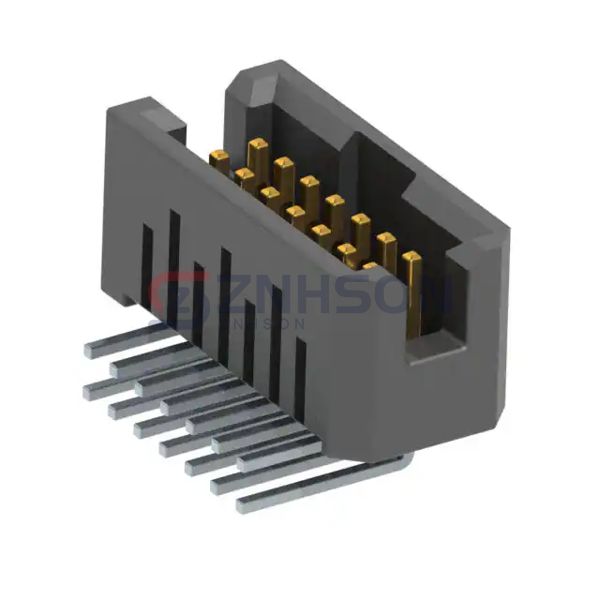

CONN HEADER R/A 14POS 1.27MM
$6.40
Available to order
Reference Price (USD)
1+
$3.65000
10+
$3.50400
100+
$2.92000
500+
$2.48200
1,000+
$2.11700
5,000+
$1.89800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.050" (1.27mm)
  • Number of Positions: 14
  • Number of Rows: 2
  • Row Spacing - Mating: 0.050" (1.27mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Length - Mating: 0.134" (3.39mm)
  • Contact Length - Post: 0.075" (1.91mm)
  • Overall Contact Length: -
  • Insulation Height: 0.225" (5.72mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Features: -
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -
