TK1R5R04PB,LXGQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage

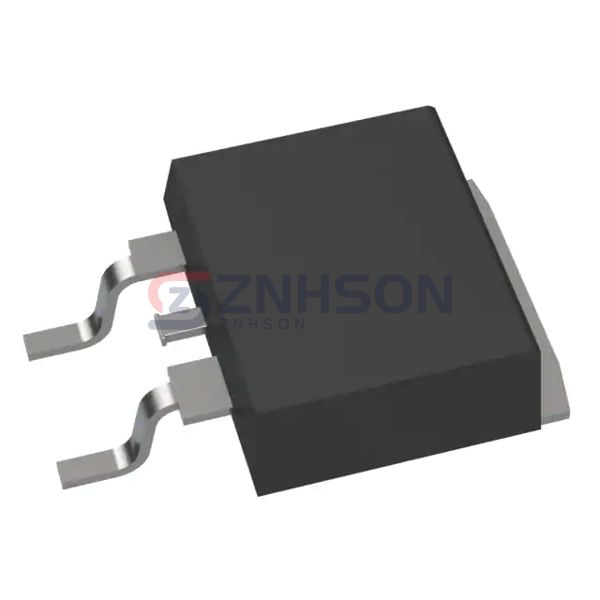

MOSFET N-CH 40V 160A D2PAK
$2.82
Available to order
Reference Price (USD)
1+
$2.82000
500+
$2.7918
1000+
$2.7636
1500+
$2.7354
2000+
$2.7072
2500+
$2.679
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TK1R5R04PB,LXGQ single MOSFET from Toshiba Semiconductor and Storage. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Toshiba Semiconductor and Storage's TK1R5R04PB,LXGQ for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 160A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 80A, 10V
- Vgs(th) (Max) @ Id: 3V @ 500µA
- Gate Charge (Qg) (Max) @ Vgs: 103 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5500 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 205W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK+
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
