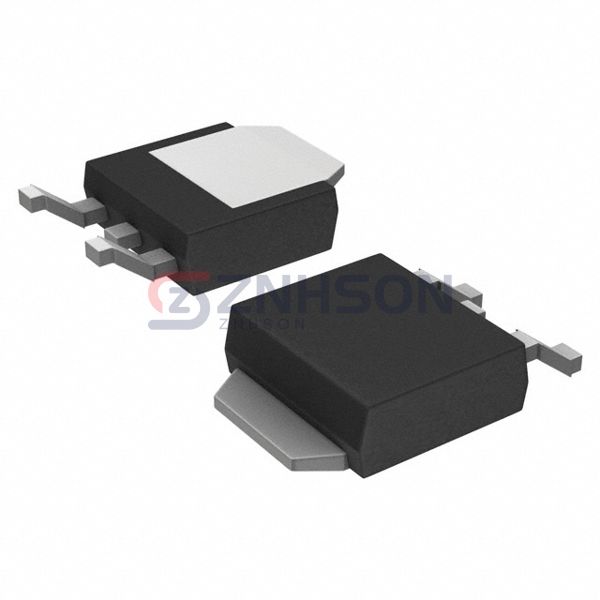

TK20P04M1,RQ(S
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 40V 20A DPAK
$0.00
Available to order
Reference Price (USD)
2,000+
$0.35090
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TK20P04M1,RQ(S by Toshiba Semiconductor and Storage, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TK20P04M1,RQ(S is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 29mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 985 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 27W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
