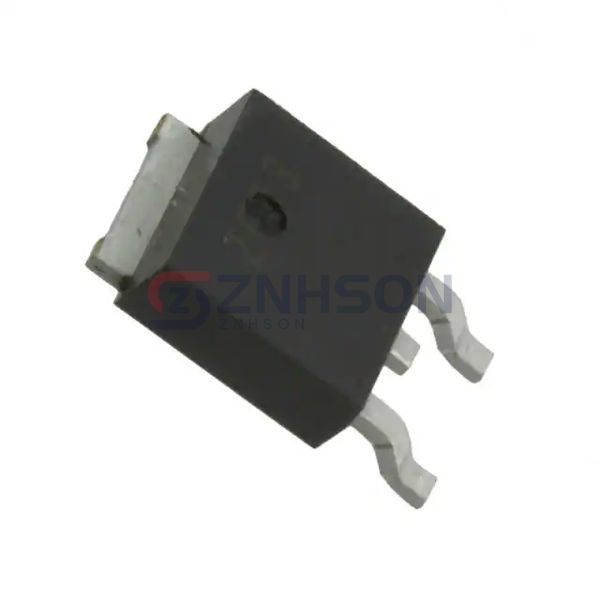

TL780-05CKTER

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC VOLT REG POS 5V 1.5A DPAK-2

Datasheet:

TL780-05CKTER Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TL780-05CKTER from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 25V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 2V @ 1A
Current - Output: 1.5A
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 85dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-252-4, DPak (3 Leads + Tab)
Supplier Device Package: 3-PowerFLEX™
