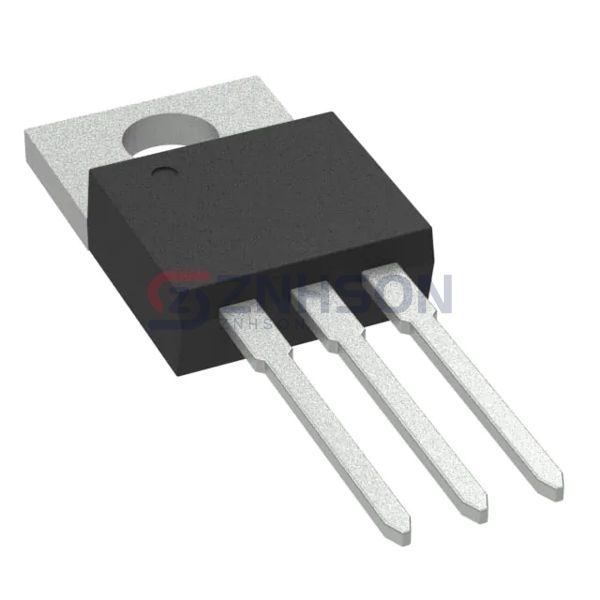

TL780-05KCSE3

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 5V 1.5A TO220-3

Datasheet:

TL780-05KCSE3 Datasheet

$0.96

Available to order

Reference Price (USD)

$0.86000

10+

$0.75200

50+

$0.70680

100+

$0.57680

500+

$0.45600

1,000+

$0.36480

2,500+

$0.33060

5,000+

$0.30780

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TL780-05KCSE3, a premium PMIC - Voltage Regulators - Linear IC from Texas Instruments, engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The TL780-05KCSE3 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments. Linear voltage regulators like the TL780-05KCSE3 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The TL780-05KCSE3 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability. The TL780-05KCSE3 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 25V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 2V @ 1A
Current - Output: 1.5A
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 85dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220-3
