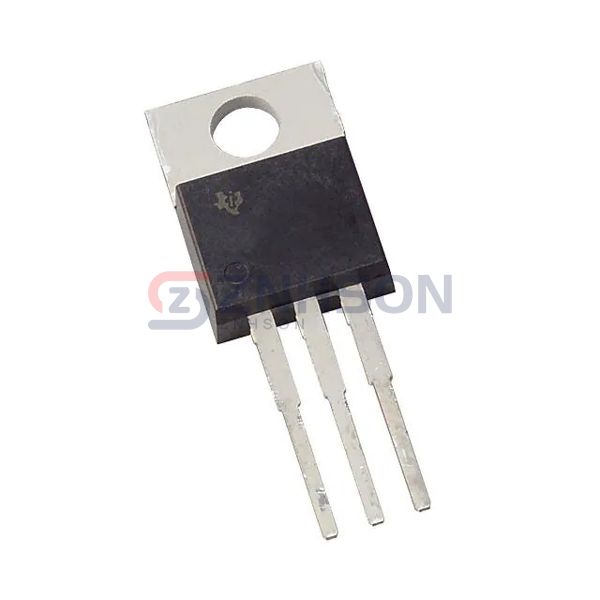

TL780-15CKC

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 15V 1.5A TO220-3

Datasheet:

TL780-15CKC Datasheet

$0.52

Available to order

Reference Price (USD)

$0.52000

500+

$0.5148

1000+

$0.5096

1500+

$0.5044

2000+

$0.4992

2500+

$0.494

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Texas Instruments's TL780-15CKC represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TL780-15CKC are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 30V
Voltage - Output (Min/Fixed): 15V
Voltage - Output (Max): -
Voltage Dropout (Max): 2V @ 1A
Current - Output: 1.5A
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 85dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220-3
