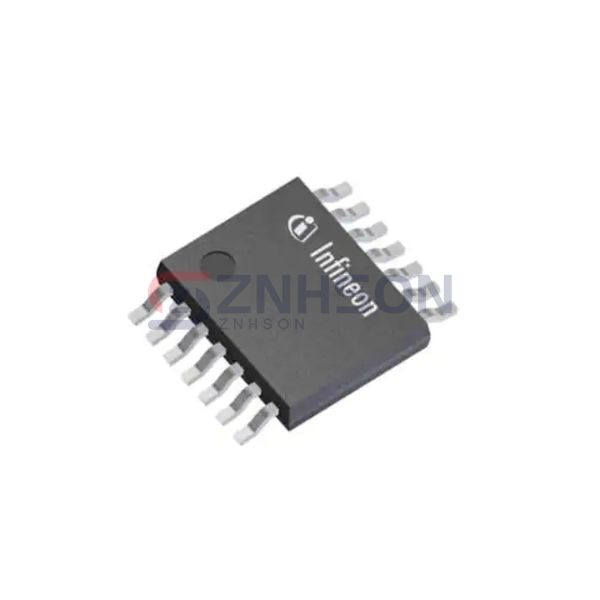

TLF11251EPXUMA1
Infineon Technologies
Infineon Technologies
TLF11251EPXUMA1
$3.17
Available to order
Reference Price (USD)
1+
$3.17000
500+
$3.1383
1000+
$3.1066
1500+
$3.0749
2000+
$3.0432
2500+
$3.0115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Infineon Technologies's TLF11251EPXUMA1, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The TLF11251EPXUMA1 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel, P-Channel MOSFET
- Voltage - Supply: 2.35V ~ 7V
- Logic Voltage - VIL, VIH: 2.31V, 4.69V
- Current - Peak Output (Source, Sink): 2.5A, 2.5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 60ns, 60ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 14-PowerTSSOP (0.154", 3.90mm Width)
- Supplier Device Package: PG-TSDSO-14-5
