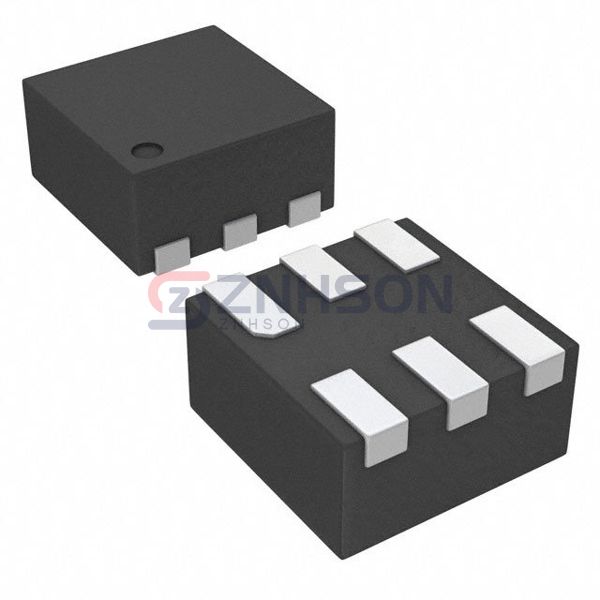

TLV70242PDSET

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 4.2V 300MA 6WSON

Datasheet:

TLV70242PDSET Datasheet

$1.16

Available to order

Reference Price (USD)

2,000+

$0.20460

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TLV70242PDSET by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the TLV70242PDSET stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The TLV70242PDSET is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 4.2V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.375V @ 300mA
Current - Output: 300mA
Current - Quiescent (Iq): 55 µA
Current - Supply (Max): 370 µA
PSRR: 68dB (1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-WFDFN
Supplier Device Package: 6-WSON (1.5x1.5)
