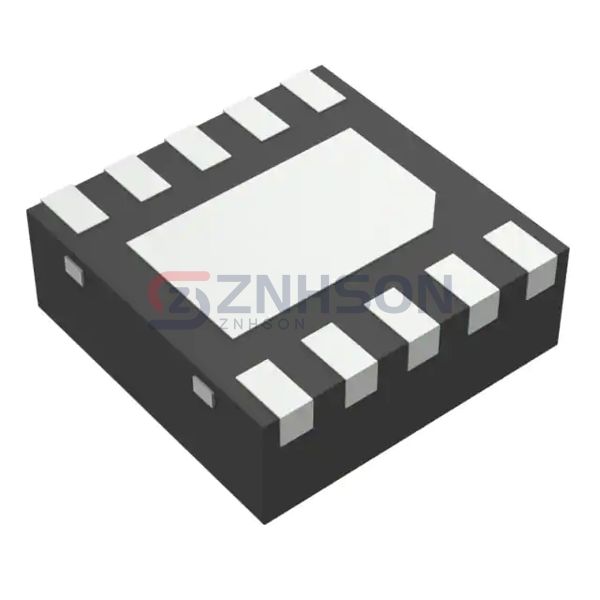

TLV75101PDSQR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 500MA 10WSON

Datasheet:

TLV75101PDSQR Datasheet

$0.64

Available to order

Reference Price (USD)

$0.64000

500+

$0.6336

1000+

$0.6272

1500+

$0.6208

2000+

$0.6144

2500+

$0.608

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TLV75101PDSQR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 2
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 0.55V
Voltage - Output (Max): 5.5V
Voltage Dropout (Max): 0.88V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 35 µA
Current - Supply (Max): -
PSRR: 50dB ~ 30dB (1kHz ~ 1MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 10-WFDFN Exposed Pad
Supplier Device Package: 10-WSON (2x2)
