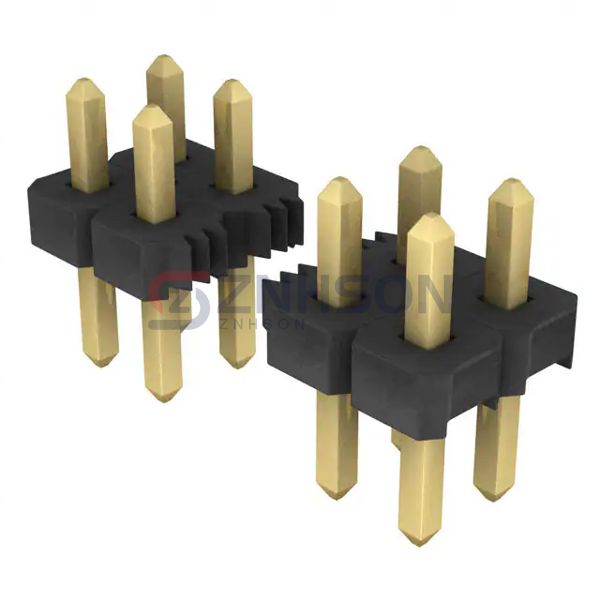

TLW-122-06-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 44POS 2.54MM
$7.90
Available to order
Reference Price (USD)
1+
$7.32000
10+
$7.01700
25+
$6.40640
50+
$6.10140
100+
$5.79630
250+
$5.18612
500+
$4.88108
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TLW-122-06-G-D rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 44
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
Related Products
Sullins Connector Solutions
GEC24SABN-M30
TE Connectivity AMP Connectors
9-146305-0-17
TE Connectivity AMP Connectors
1-292173-3
Amphenol ICC (FCI)
77311-418-28LF
Samtec Inc.
FTSH-135-01-L-D
Preci-Dip
800-V3-019-30-001101
Amphenol ICC (FCI)
68690-172

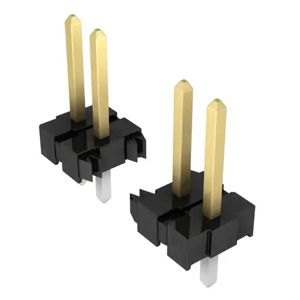

Molex
0026485101

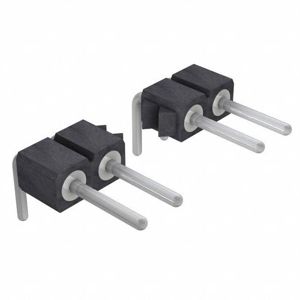

Preci-Dip
