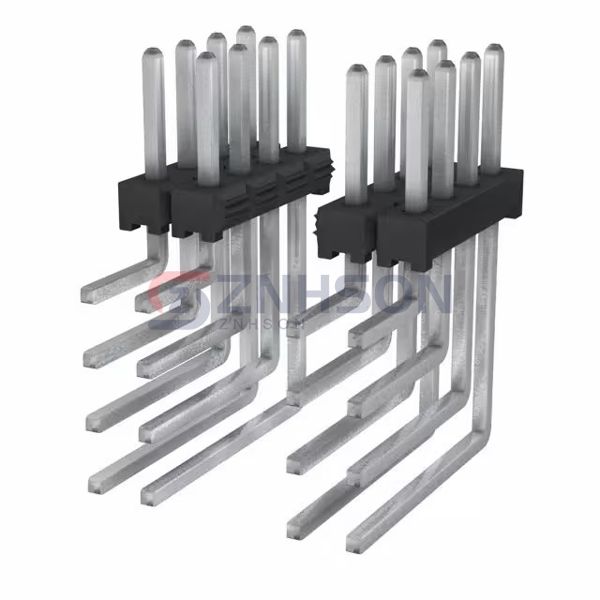

TMM-124-01-T-Q-RA

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 96
• Number of Rows: 4
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.126" (3.20mm)
• Contact Length - Post: 0.120" (3.05mm)
• Overall Contact Length: -
• Insulation Height: 0.315" (8.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: -
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): 3.2A per Contact
• Voltage Rating: -
