TMS-120-02-G-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 20POS 1.27MM
$4.15
Available to order
Reference Price (USD)
1+
$2.55000
10+
$2.31800
100+
$1.98660
500+
$1.65550
1,000+
$1.41900
5,000+
$1.25818
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMS-120-02-G-S by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.100" (2.54mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.320" (8.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A per Contact
- Voltage Rating: -
Related Products
Harwin Inc.

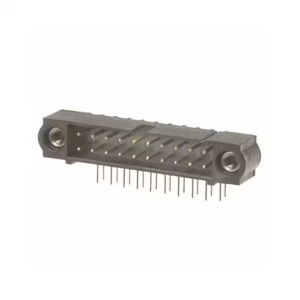

M80-5315042
Hirose Electric Co Ltd
DF11-18DP-2DS(52)
Preci-Dip

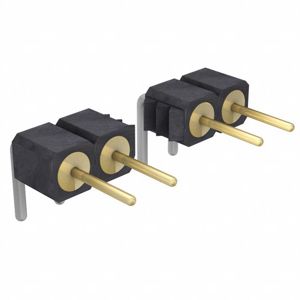

399-V3-114-10-009101
TE Connectivity AMP Connectors

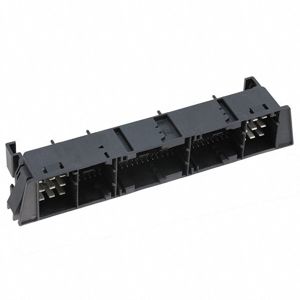

7-967288-1
Mill-Max Manufacturing Corp.

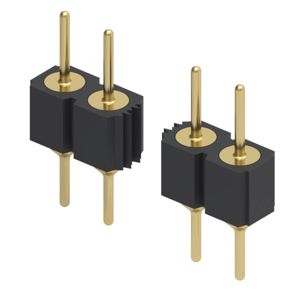

350-10-155-00-006000
TE Connectivity AMP Connectors

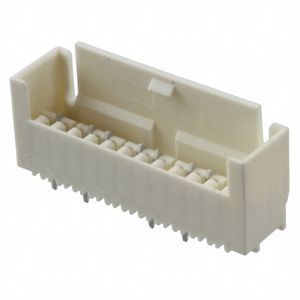

2-1971818-2
Sullins Connector Solutions

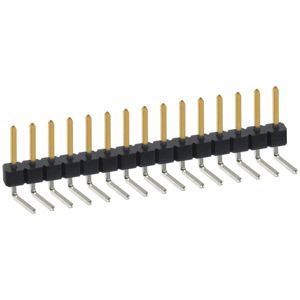

PBC15SBCN
