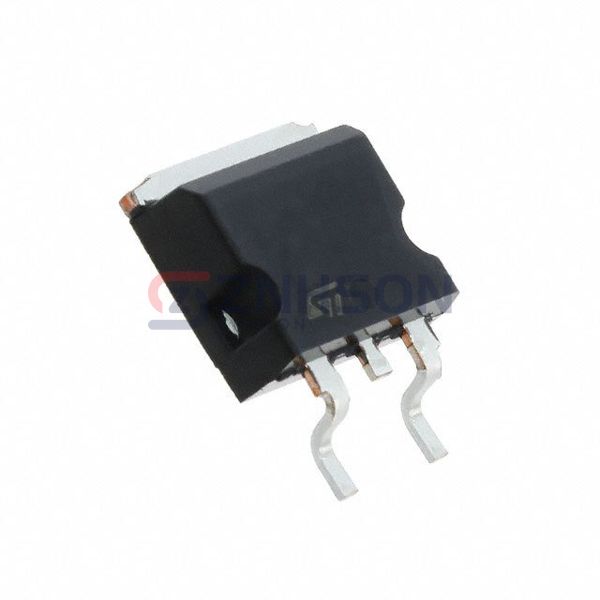

TN4015H-6G-TR
STMicroelectronics
STMicroelectronics
SCR 600V 40A D2PAK
$1.92
Available to order
Reference Price (USD)
1,000+
$0.84624
2,000+
$0.79464
5,000+
$0.76884
10,000+
$0.74304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TN4015H-6G-TR Thyristor - SCR by STMicroelectronics is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With STMicroelectronics's commitment to quality, the TN4015H-6G-TR guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 600 V
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 15 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 25 A
- Current - On State (It (RMS)) (Max): 40 A
- Current - Hold (Ih) (Max): 60 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 394A, 360A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
