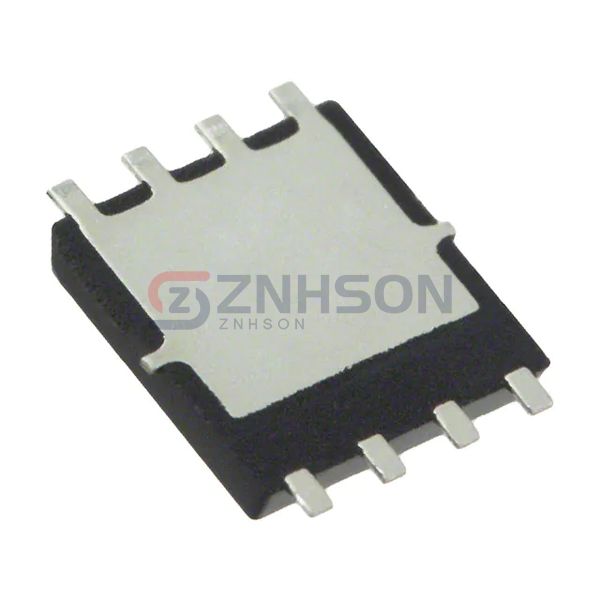

TPCC8136.LQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET P-CH 20V 9.4A 8TSON
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TPCC8136.LQ from Toshiba Semiconductor and Storage, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TPCC8136.LQ ensures reliable performance in demanding environments. Upgrade your circuit designs with Toshiba Semiconductor and Storage's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 9.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 16mOhm @ 9.4A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2350 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta), 18W (Tc)
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
