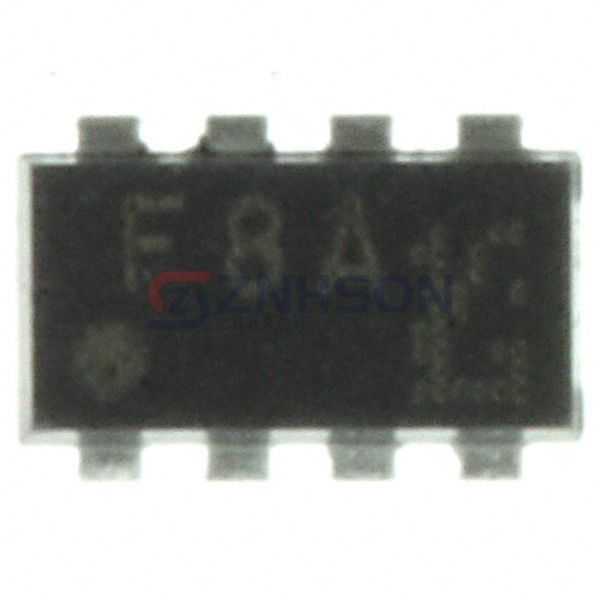

TPCF8B01(TE85L,F,M
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET P-CH 20V 2.7A VS-8
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPCF8B01(TE85L,F,M from Toshiba Semiconductor and Storage sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Toshiba Semiconductor and Storage's TPCF8B01(TE85L,F,M for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 1.4A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 470 pF @ 10 V
- FET Feature: Schottky Diode (Isolated)
- Power Dissipation (Max): 330mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: VS-8 (2.9x1.5)
- Package / Case: 8-SMD, Flat Lead
