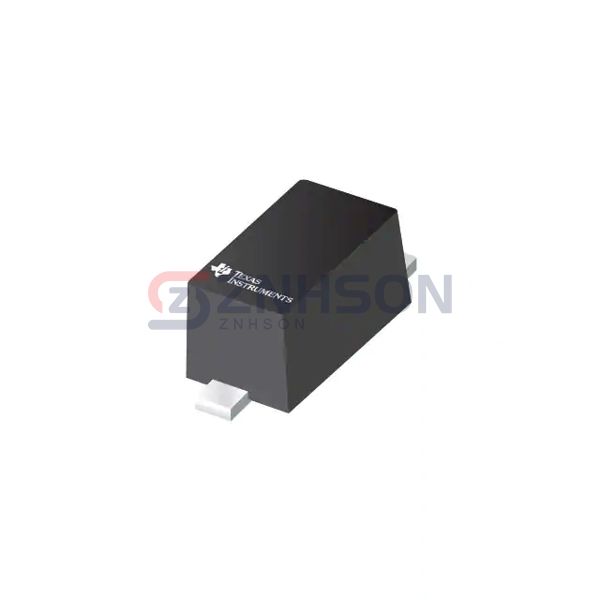

TPD1E05U06DYAR
Texas Instruments
Texas Instruments
0.4-PF, 5.5-V, 12-KV ESD PROTECT
$0.11
Available to order
Reference Price (USD)
1+
$0.10685
500+
$0.1057815
1000+
$0.104713
1500+
$0.1036445
2000+
$0.102576
2500+
$0.1015075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with the TPD1E05U06DYAR TVS diode from Texas Instruments. This diode provides excellent surge protection and stability, ensuring long-term reliability. TVS diodes are indispensable in industries such as aerospace, industrial automation, and consumer electronics. They are particularly effective in shielding microcontrollers and sensors from transient voltages. For example, the TPD1E05U06DYAR can protect IoT devices from ESD events. Texas Instruments delivers high-performance TVS diodes tailored to meet the rigorous demands of modern electronics.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 6.5V
- Voltage - Clamping (Max) @ Ipp: 14V (Typ)
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 40W
- Power Line Protection: Yes
- Applications: HDMI, USB
- Capacitance @ Frequency: 0.42pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOT-5X3
