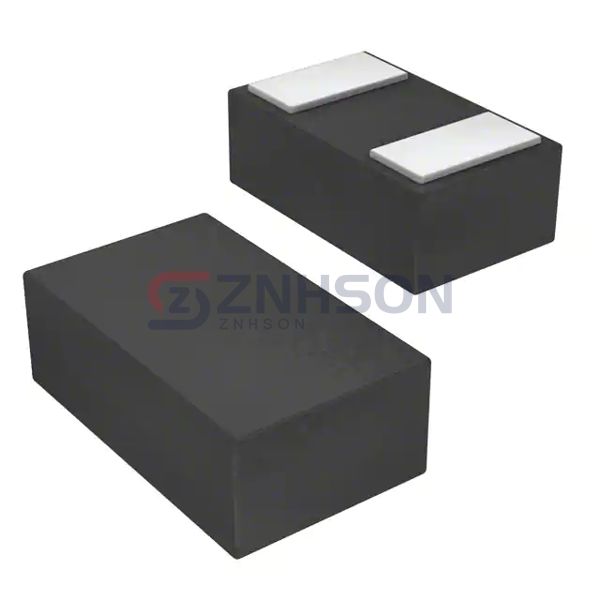

TPD1E0B04DPYR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 19VC 2X1SON
$0.44
Available to order
Reference Price (USD)
10,000+
$0.10693
30,000+
$0.09860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD1E0B04DPYR by Texas Instruments is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the TPD1E0B04DPYR can secure CAN bus lines in vehicles against voltage spikes. Rely on Texas Instruments for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3.6V
- Voltage - Breakdown (Min): 6.7V (Typ)
- Voltage - Clamping (Max) @ Ipp: 19V
- Current - Peak Pulse (10/1000µs): 1.7A (8/20µs)
- Power - Peak Pulse: 15W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 0.15pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
