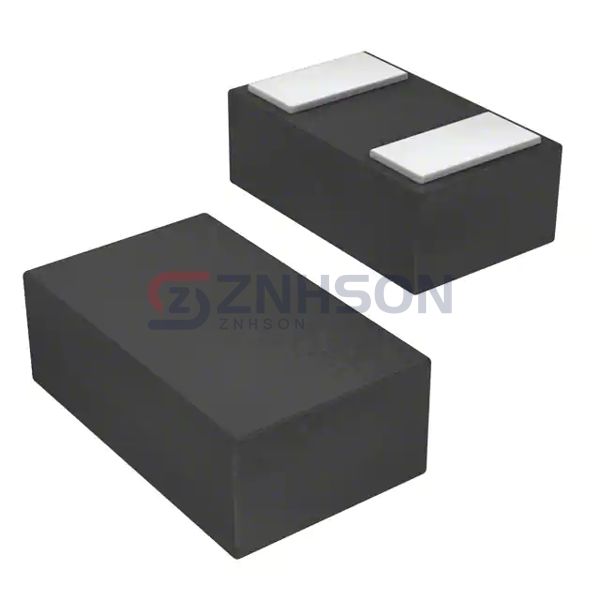

TPD1E10B09DPYT
Texas Instruments
Texas Instruments
TVS DIODE 9VWM 20VC 2X1SON
$0.88
Available to order
Reference Price (USD)
250+
$0.46072
500+
$0.39346
1,250+
$0.31659
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD1E10B09DPYT TVS diode by Texas Instruments delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the TPD1E10B09DPYT can protect GPS modules in vehicles from ESD events. Texas Instruments provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 9V (Max)
- Voltage - Breakdown (Min): 9.5V
- Voltage - Clamping (Max) @ Ipp: 20V
- Current - Peak Pulse (10/1000µs): 4.5A (8/20µs)
- Power - Peak Pulse: 90W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
Related Products
Rohm Semiconductor

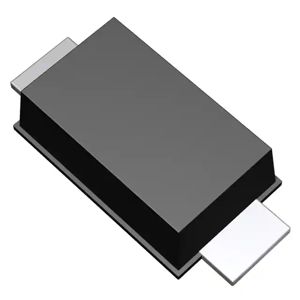

SMF16VTFTR
Vishay General Semiconductor - Diodes Division
SMB8J15CAHE3_A/I
Torex Semiconductor Ltd
XBP06V4E4GR-G
Meritek
SMAJ20
Comchip Technology
TV06B8V5J-G
Microchip Technology
MART100KP220AE3
Littelfuse Inc.

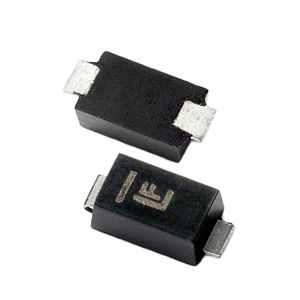

TPSMF4L9.0A
Littelfuse Inc.
1.5KE56A
STMicroelectronics

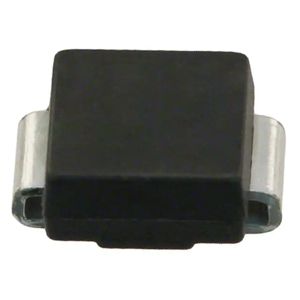

SM6T68CAY
