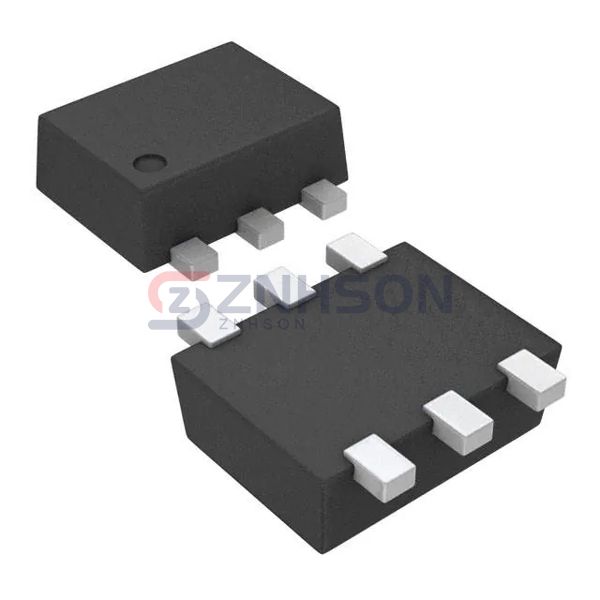

TPD2E1B06DRLR
Texas Instruments
Texas Instruments
TVS DIODE 5.5VWM 15VC 6SOT
$0.60
Available to order
Reference Price (USD)
4,000+
$0.19205
8,000+
$0.17966
12,000+
$0.16727
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD2E1B06DRLR by Texas Instruments is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the TPD2E1B06DRLR can secure CAN bus lines in vehicles against voltage spikes. Rely on Texas Instruments for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: -
- Bidirectional Channels: 2
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 7V
- Voltage - Clamping (Max) @ Ipp: 15V (Typ)
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 35W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-5X3
Related Products
Vishay General Semiconductor - Diodes Division
1.5SMC56AHM3_A/H
Diotec Semiconductor
1.5SMCJ150
Meritek

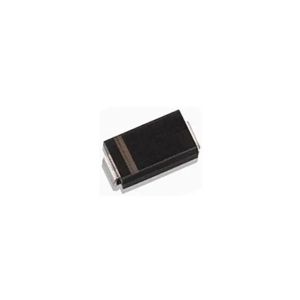

SMAJ120C
Diodes Incorporated

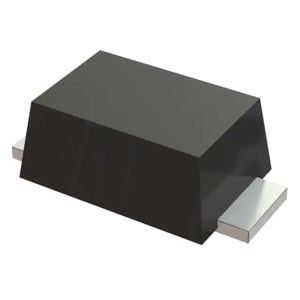

SMF4L6.5CAQ-7
