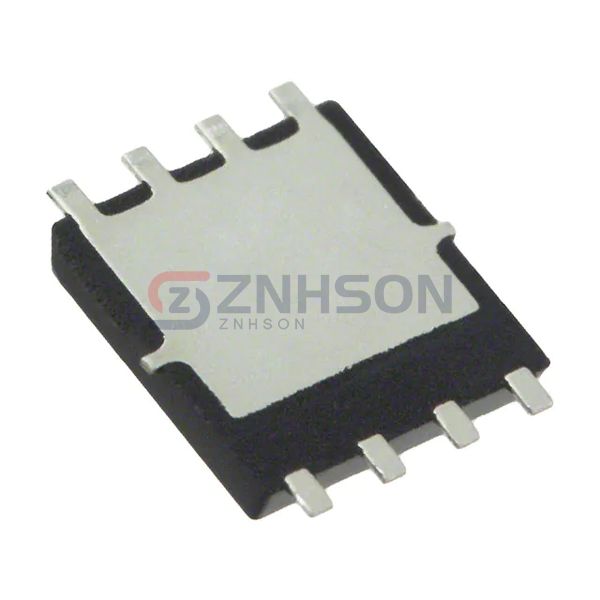

TPN7R504PL,LQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 40V 38A 8TSON
$0.68
Available to order
Reference Price (USD)
1+
$0.68000
500+
$0.6732
1000+
$0.6664
1500+
$0.6596
2000+
$0.6528
2500+
$0.646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TPN7R504PL,LQ single MOSFET from Toshiba Semiconductor and Storage. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Toshiba Semiconductor and Storage's TPN7R504PL,LQ for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 19A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2040 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 610mW (Ta), 61W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
