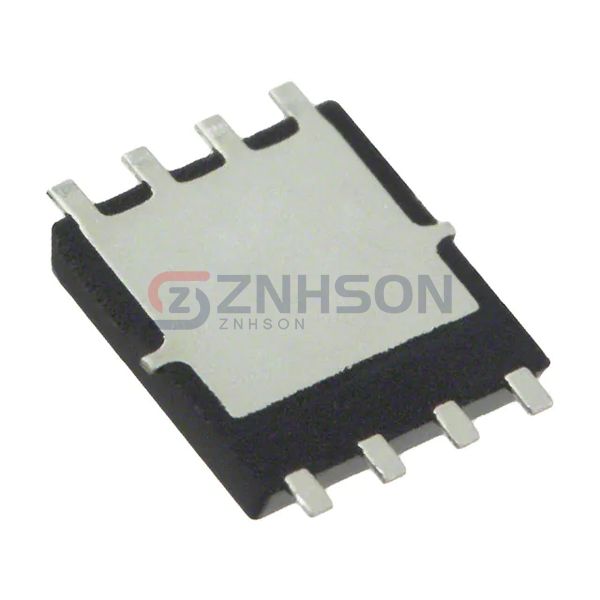

TPN7R506NH,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 26A 8TSON
$0.97
Available to order
Reference Price (USD)
5,000+
$0.37520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPN7R506NH,L1Q from Toshiba Semiconductor and Storage sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Toshiba Semiconductor and Storage's TPN7R506NH,L1Q for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 4V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta), 42W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
