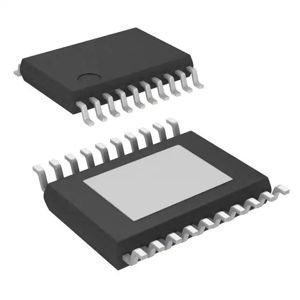

TPS70145PWP

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 3.3V/1.2V 20HTSSOP

Datasheet:

TPS70145PWP Datasheet

$6.97

Available to order

Reference Price (USD)

$5.96000

10+

$5.35500

70+

$5.06257

140+

$4.38750

560+

$3.73500

1,050+

$3.15000

2,520+

$2.99250

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS70145PWP from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 2
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 3.3V, 1.2V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.28V @ 500mA, -
Current - Output: 500mA, 250mA
Current - Quiescent (Iq): 190 µA
Current - Supply (Max): 230 µA
PSRR: 60dB (1kHz)
Control Features: Enable, Power Good, Reset, Sequencing
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 20-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package: 20-HTSSOP
