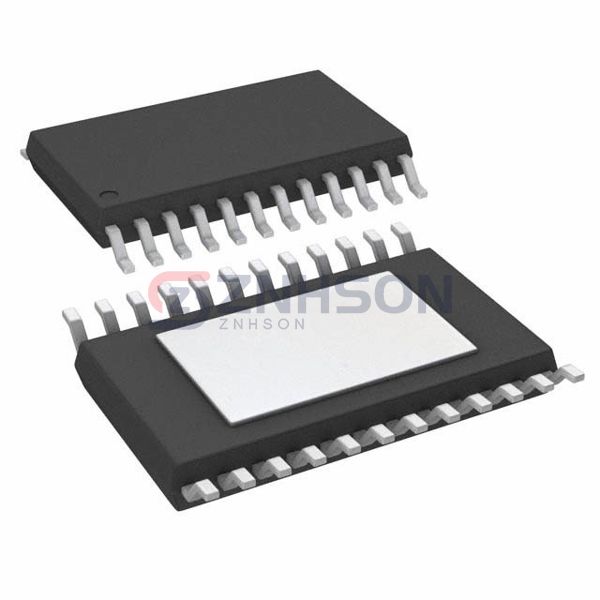

TPS70402PWPG4
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 24HTSSOP
$0.00
Available to order
Reference Price (USD)
120+
$5.01958
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPS70402PWPG4 by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications.
In the PMIC - Voltage Regulators - Linear category, the TPS70402PWPG4 stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions.
The TPS70402PWPG4 is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.
Specifications
- Product Status: Discontinued at Digi-Key
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 2
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 1.22V
- Voltage - Output (Max): 5.5V
- Voltage Dropout (Max): 0.25V @ 1A, -
- Current - Output: 1A, 2A
- Current - Quiescent (Iq): 250 µA
- Current - Supply (Max): -
- PSRR: 65dB (1kHz), 60dB (1kHz)
- Control Features: Enable, Power Good, Reset, Sequencing
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 24-HTSSOP
Related Products
National Semiconductor
LP2989IM-2.5
Analog Devices Inc.
LT1084IK
onsemi
NCV8506D2TADJR4G
onsemi
CS8129YT5G
MaxLinear, Inc.
SPX29151T5-L-5-0
onsemi
MC78L12ACDG
Microchip Technology
MCP1812BT-020/OT
Micro Commercial Co

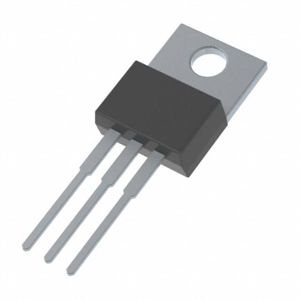

MC7915CT-BP
Microchip Technology

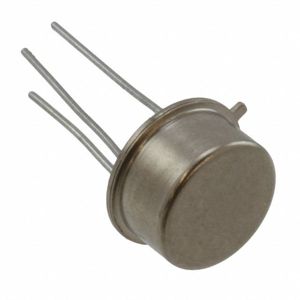

SG7815T-JAN
