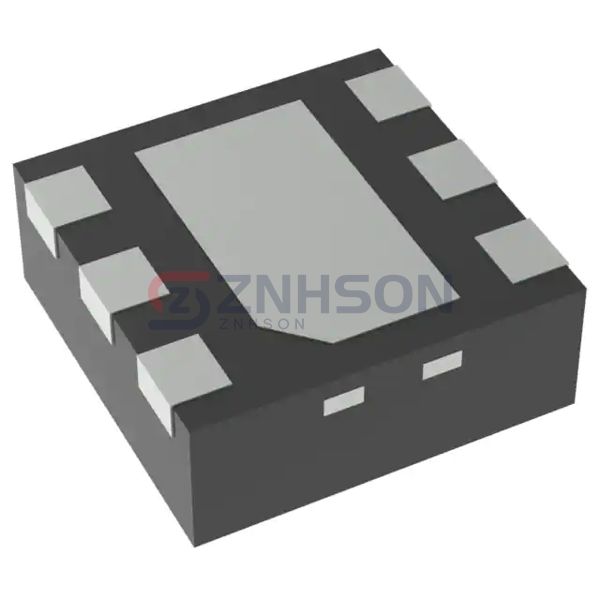

TPS71710DRVT

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 1V 150MA 6WSON

Datasheet:

TPS71710DRVT Datasheet

$1.61

Available to order

Reference Price (USD)

$1.61000

500+

$1.5939

1000+

$1.5778

1500+

$1.5617

2000+

$1.5456

2500+

$1.5295

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Texas Instruments's TPS71710DRVT represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TPS71710DRVT are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6.5V
Voltage - Output (Min/Fixed): 1V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.3V @ 150mA
Current - Output: 150mA
Current - Quiescent (Iq): 80 µA
Current - Supply (Max): 100 µA
PSRR: 70dB ~ 45dB (100Hz ~ 1MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
